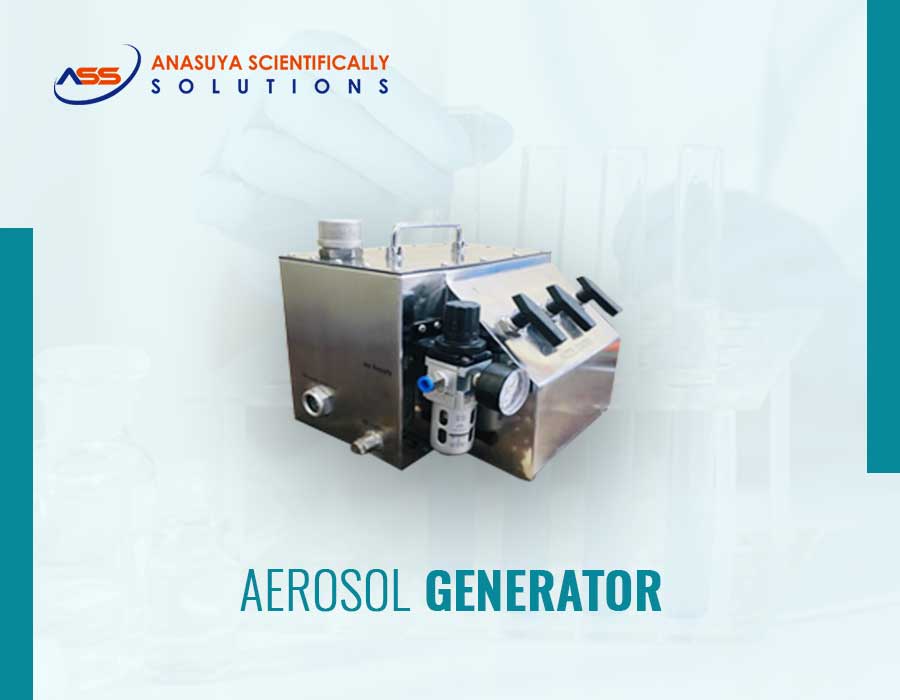

The 4B series family of Laskin-Nozzle aerosol generators are durable, portable, and reliable. Designed for testing filter systems ranging from small glove boxes to large cleanroom plenums, Anasuya Scientifically Solutions Laskin Nozzle generators provide the ideal solution for creating a polydispersed, submicron aerosol to certify and qualify in-situ filter systems.
Applications:
- Independent Filter Certifiers
- Nuclear Facilities
- Pharmaceutical Manufacturers
- Medical Facilities & Cleanrooms
- Bio-Safety Cabinets & Fume Hoods*
- * per NSF/ANSI 49
Key Features & Benefits:
- Adjustable aerosol concentration output to meet different application requirements
- Air flow rates from 405 to 8,100 cfm for a wide variety of testing requirements
- Flex-fuel capable, allows for the use of a variety of reagents
- Lightweight and rugged, ideal for remote locations
A Tough, Portable Solution
The 4B series of Laskin Nozzle aerosol generators are durable, portable, and reliable. Designed for testing filter systems ranging from small glove boxes to large Clean-room plenums, Anasuya Scientifically Solutions Laskin Nozzle generators provide the ideal solution for creating a poly-dispersed, sub micron aerosol to certify and qualify insitu filter systems. End users include independent filter certifiers, government and commercial nuclear facilities, pharmaceutical manufacturers, medical facilities, as well as other industrial applications.
A Flexible Solution
The 4B family of aerosol generators produce an industry standard true Laskin III-A repeatable aerosol and feature adjustable aerosol concentration output to meet multiple application requirements. These generators are used in conjunction with an aerosol photometer to measure the aerosol penetration of an individual filter or filter system, typically to identify, quantify and repair leaks. Aerosol concentration output varies by generator model; however concentrations can be achieved from 100 μg/l down to 10 μg/l at airflows ranging from 405 to 8,100 cfm*.
Rugged Convenient Design
The 4B family features rugged stainless steel, with easily cleanable construction, a large fill port, jet and pressure control, and a standard three-inch sanitary fitting outlet collar.
Optional Hose Adapter Kit
An optional hose adapter kit (hose not included), used to introduce aerosol remotely, connects easily to the standard outlet collar.
Optional Heavy Duty Case
Heavy duty, water-proof transport case with wheels. Accommodates either a 4B, 4B-Lite or 6D generator, with space for the optional hose adapter. (Universal case with 6D generator shown).
Specifications:
| 4B | 4B Lite | |
|---|---|---|
| Dimension | 25 cm x 28 cm x 26 cm | 19 cm x 28 cm x 26 cm |
| (L x W x H) | (10” x 11.25” x 10.5”) | (7.6” x 11.25” x 10.5”) |
| Weight | 7.3 kg (16 lb) | 5.5 kg (12 lb) |
| Aerosol Output | 50 – 8,100 cfm | 50 – 4,050 cfm |
| Concentration* | 100 μg/l @ 810 cfm 10 μg/l @ 8,100 cfm |
100 μg/l @ 405 cfm 10 μg/l @ 4,050 cfm |
| Generator Type | Six Nozzle Laskin Style Aerosol Generator (operate 1 to 6 Laskin Nozzles) | Three Nozzle Laskin Style Aerosol Generator (operate 1 to 3 Laskin Nozzles) |
| Compressed Air | min 2.65 cfm/nozzle @ 20 psig | |
| Aerosol Type | Poly-dispersed (Cold) | |
