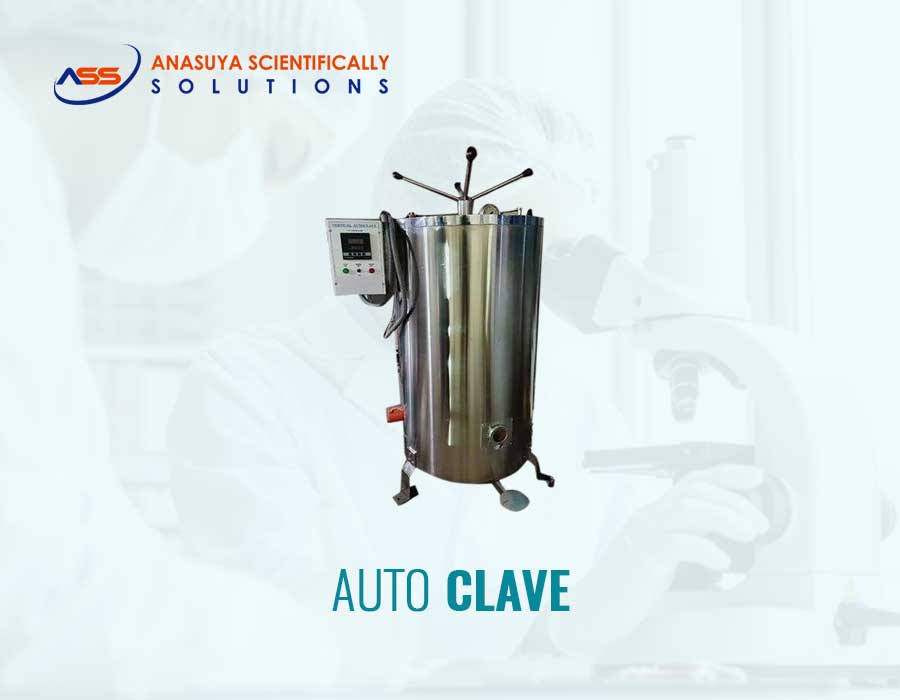

We,ANASUYA SCIENTIFICALLY SOLUTIONS are the leading manufacturers, suppliers and dealers of VERTICAL AUTOCLAVE FULLY AUTOMATIC (ASS-02) which is used for sterilization under saturated steam pressure at 15PSI. This Vertical Autoclave Fully Automatic is used for sterilization under working steam pressure up to 15psi
| S.R SR.NO |
Size in Cms | Cap. In Cap. ltr |
|---|---|---|
| 1 | 25 Dia x 45 h | 22 |
| 2 | 30 Dia x 50 ht | 35 |
| 3 | 35 Dia x 55 ht | 52 |
| 4 | 40 Dia x 60 ht | 90 |
| 5 | 45 Dia x 60 ht | 95 |
| 6 | 45 Dia x 75 ht | 140 |
| 7 | 55 Dia x 75 ht | 175 |
| 8 | 55 Dia x 90 ht | 200 |
Features
- A reliable convenient method of steam sterilization
- Inner chamber made of thick stainless steel.
- Outer chamber made of M.S. or Stainless steel immersion type heater is provided. Lid is made up stainless steel and die pressed
- This system equipped with pressure gauge, steam release valve and safety valves
- This instrument supplied with stainless steel basket.
- Pressure controls by spring valves.
- It Is Used For Sterilization Under Working Steam Pressure Up to 15 Psi
- To work on 230 volts, this equipment is fitted with silicon rubber gasket jointless in A.C. Only.
- Foot lifting arrangement.
Accessories for Autociave
- a) Foot Lifting Arrangement.
- b) Digital Temperature Indicator Cum Controller With Timer.
- c) Water Level Indicator.
- d) Pressure cut off switch.
- e) Fully automatic autoclave extra.
VERTICAL AUTOCLAVE FULLY AUTOMATIC ( ASS-02A )
| S.NO | Size Available (Dia x Height) | Cap. in Ltr. |
|---|---|---|
| 1 | 25x45cm | 22 |
| 2 | 30x50cm | 35 |
| 3 | 35x55cm | 52 |
| 4 | 45x60cm | 95 |
| 5 | 55x75cm | 175 |
| 6 | 55x90cm | 200 |
- Double Body Construction Single Chamber for Steam & Water Covered Externally By Outer Shell.
- Lid Made Of Thick Stainless Steel Pressure Up To 22 Psi Factory Set At 15 Psi ( Temp 121°C )
- complete Unit With Automatic Air Purging Digital Temp. Controller & indication With 0.1 C Accuracy
- Resolution With Electronic Digital Timer Range 0 To 99 Min.
- Automatic Steam Release Once Autoclaving Cycle Complete.
- Complete With Pressure Gauge, Safety Valve Stem Release Valve, And Extra Safety Valve.
- Low Water Level Cut-Off. Low Water level Cut-off Assembly Connected To Heater Witch Automatically Cut-off Power To Heater If Water Level Is Not Sufficient Thus Eliminating Heater Burn Out.
- Foot Lifting Arrangement For Lid.
- Provided With S.S. 30 Grade Perforated Basket.
