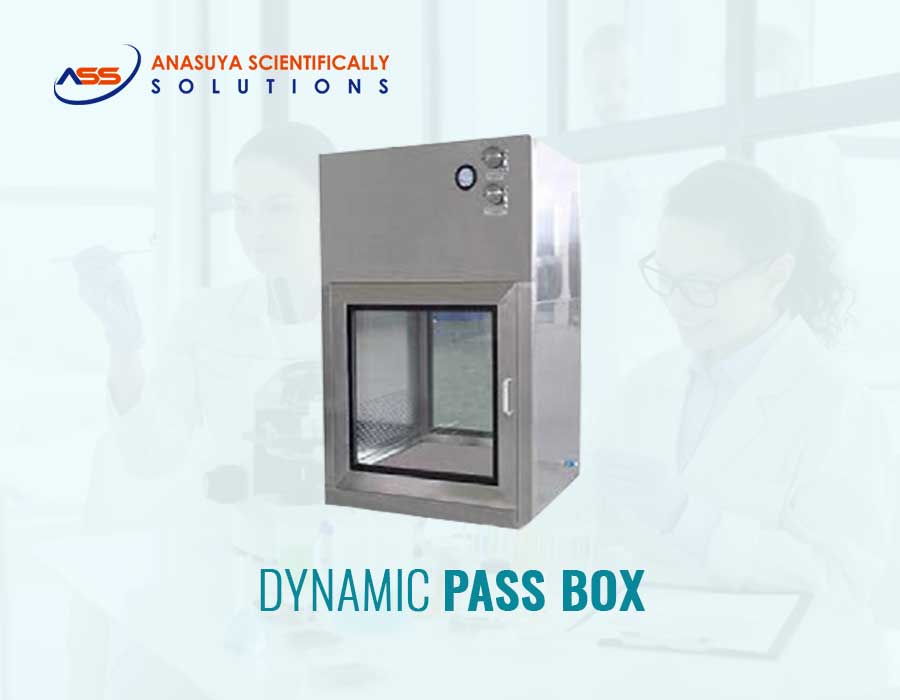

ANASUYA SCIENTIFICALLY SOLUTIONS is one of the best Dynamic Pass Box Manufacturers, Supplier. Our precision-engineered Dynamic Pass Box assists in transfer of materials driven through a controlled environment but without much personnel movement. Furthermore, this box helps in prevention of contaminants entrance either in the clean room or between various classified areas. Dynamic Pass Box that we deliver in the market is accessible at most economical prices.
Specifications
- Two Stage filtration
- Available in powder coated Mild Steel, SS 304 / SS 316/ SS 316L or a combination of both
- EU6 – Prefilter (95% down to 5 micron)
- EU14 - HEPA Filter – Supply (99.999% down to 0.3 micron)
- Dynamically balanced Motor-blower facilitated with suspension arrangement to minimize the noise level
- Double walled flush glass view panels provided with doors
- SS Handles and SS hinges
- Internal covings for easy cleaning
- Electro-magnetic Interlocking
- Indicator on either side
- Door Release Switch on either side
- Differential Pressure Gauge : 1 No.
- On / Off Switch for Motor
- DOP Test Port
Accessories Made Available :
- Mechanical Interlocking
- U. V. Light with Hour Meter with interlocking arrangement to put-off U.V. Light if any of the door opens
- Floor mounted construction with three side wall structure & Door Drop Seal
- Support Stand for mounting the pass box
- Flange for filling the gap between the pass box and the clean room wall
- Audio / Visual alarm for blower tripping with Fault Acknowledgement & Reset Switch
- Clean Down Timer with Operation Hold Indicator & interlocking to put on fluorescent lights only after clean down time over
- Fluorescent light with interlocking arrangement to put on light when the doors are in closed position
Dimensions
Operating Conditions
- Air cleanliness : ISO Class 5 (ISO 14644-1:1999)
- Air Velocities : 0.45 ± 0.05 mps
- Air Flow : Vertical - Recirculatory
- Noise Level : Less than 67 dB
- Vibration Level : Minimum
- Power Supply : 230V AC 1-Ø 50HZ
| Model | Work Area Dimension (L x W x H) |
|---|---|
| ASS- DPB-18-18-18 | 450 x 450 x 450 mm |
| ASS- DPB-24-24-24 | 610 x 610 x 610 mm |
