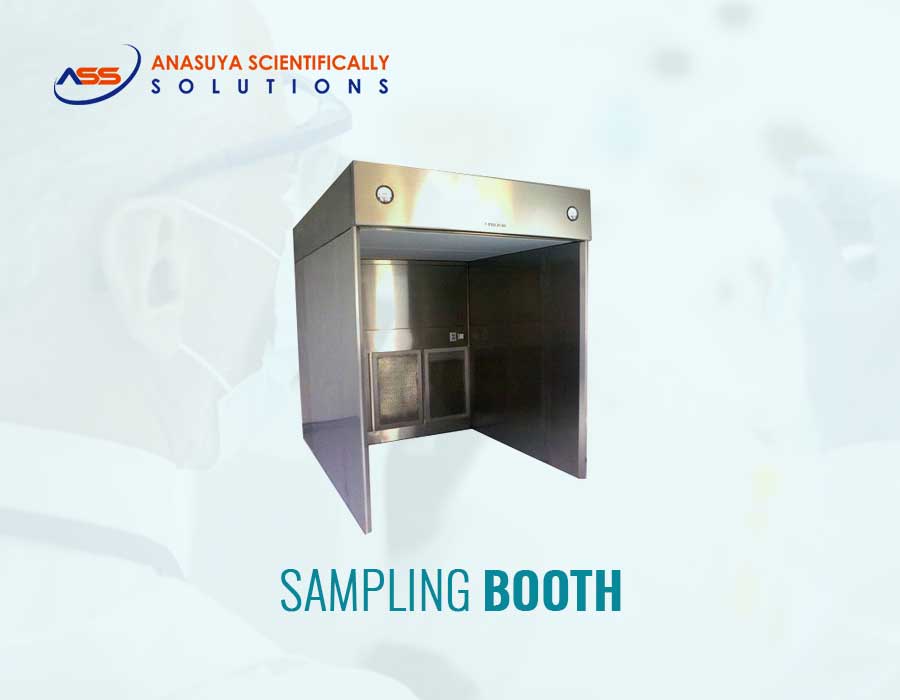

Sampling Booth

ANASUYA SCIENTIFICALLY SOLUTIONS offering a wide range of Sampling Booth. We are leading Sampling Booth manufacturer for pharmaceutical in Hyderabad India. ANASUYA SCIENTIFICALLY SOLUTIONS has in-house facility manufacturing export Sampling Booth . Our designs are with open front containment systems with built-in scavenging arrangement. This unit is designed and made with stainless steel for providing safety to the operator and the surrounding environment.

Sampling booths are designed as Open Front Containment Systems with built-in Scavenging arrangement that draws Powder aerosols away from the operator and the operating environment, protecting products and personnel for 100% cleanliness. These workstations provide clean Class 100 laminar flow air for process Protection by using a two-stage filtration process. Room air is first clean with an electrostatically charged pre-filter and then further cleaned with a HEPA filter.Laminar air flows circulation system

ANASUYA SCIENTIFICALLY SOLUTIONS is the leading manufacturer for sampling booth. We are the manufacturer,supplier,Exporter in Hyderabad ,India.We have state of art facility for manufacturing the sampling and dispensing booth.

Sampling Booth Specifications

  • Cleanliness : Class 100
  • Particle retention : 0.3 micron
  • Standard :FED 209E
  • Velocity : 100FPM + 20%
  • Illumination : 4 ft. 40w with diffuser
  • Noise level : 60-65 decibels
  • Nozzles : Adjustable SS • Power supply : 220v single phase.
  • Three stage filtration systems.

Main Components:

  • Pre-filters – 10 Micron
  • Intermediate Filter—-3 Micron
  • HEPA Filter ————-0.3 Micron
  • Statically & Dynamically balanced blowers with isolator to reduce noise level
  • Fluorescent Lights with Milky White Diffuser
  • Differential Pressure Gauges for Pre,Intermediate,HEPA filters.
  • Blower, CFL,UV Light ON/OFF Switches.
  • DOP/PAO ports for HEPA Filter Integrity.
  • Power sockets 6/16Amps Power Sockets.

Optional Accessories

  • Flameproof electrical components for Bulk drug industry.
  • PVC strip curtains in the front part.
  • Velocity sensors.
  • variable frequency drives for velocity control.
  • HEPA filter pressure indicators for replacement signals.
  • Stainless steel platform for weighing

Features:

  • Cross contamination free.
  • Easily cleanable.
  • Easy replacement of Filters.
  • Robust in construction.
