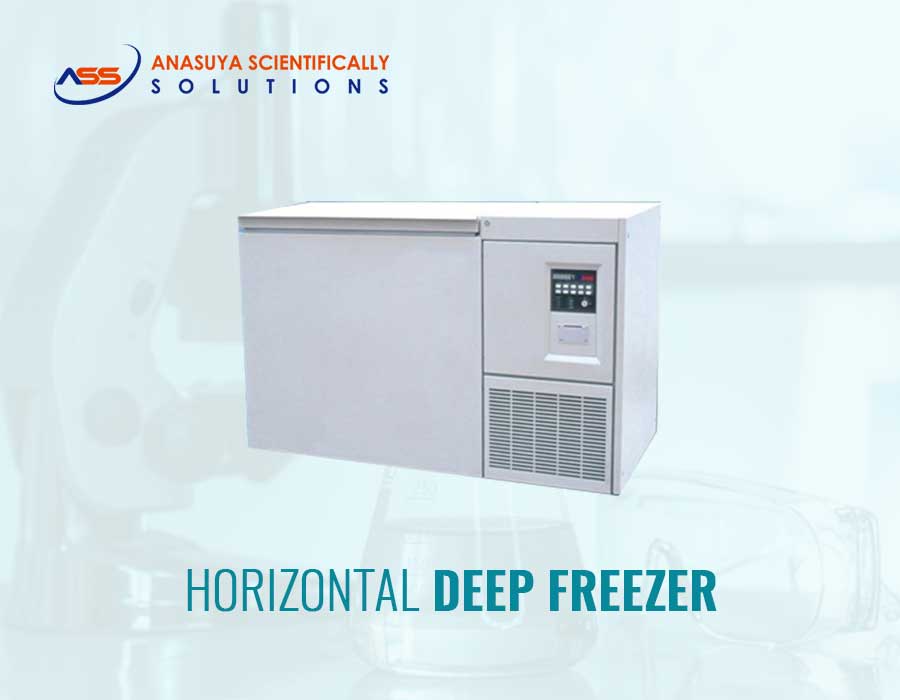

Horizontal Deep Freezer

APPLICATION

  • Useful for low temperature quick freezing and storing of Vaccines, Biological and medical specimens, Blood Components and general laboratory freezing applications.
  • CONSTRUCTIONAL AND SALIENT FEATURES
  • Cooling coils are placed between foamed-in-place PUF insulation and inner side of stainless steel chamber eliminating any chances of FROST FORMATION on the evaporator which leads to choking of COMPRESSOR/CONDENSING UNIT.
  • High density foamed-in-place polyurethane foam (PUF) insulation for minimal cooling losses.
  • Evenly spread evaporator accounts for higher temperature uniformities throughout the cooling chamber
  • Specially designed DEEP FREEZER HORIZONTAL LATCHES to keep the door tightly locked eliminating chances of any cooling loss.
  • Outer made of powder coated CRC Steel Sheet.
  • Inner chamber and trays made of stainless steel (SS-304).
  • Caster wheel mounted for easy mobility.
  • ECO FRIENDLY COMPRESSOR with CFC-FREE refrigerant.
  • Fitted with Microprocessor Based Digital Temperature Indicator-cum-Controller with in-built HI/LOW
  • Temperature deviation alarm.

TECHNICAL SPECIFICATIONS & ORDERING INFORMATIONS

Temperature range (in AC Room) Ambient to -20oC or -300C or -40 oC(as ordered)
Temperature Accuracy +1oC
MOC Outer Powder Coated CRC Steel Sheet
MOC Inner Chamber and trays made of Stainless Sheet (SS-304)
Insulation High Density PUF insulation for tighter temperature controls.
Temperature Control Microprocessor based Digital Temperature Indicator-cum-Controller
Temperature deviation alarm.
Display Digital LED Set value (SV) & Process value (PV)

DEEP FREEZER HORIZONTAL TEMPERATURE RANGE UPTO - 200C

MODEL VOLUME CAPACITY
ASS-HDF-4 4.0 Cuft 112 ltrs
ASS-HDF-6 6.0 Cuft 171 ltrs
ASS-HDF-10 T10.0 Cuft 280 ltrs

DEEP FREEZER HORIZONTAL TEMPERATURE RANGE UPTO - 30OC

MODEL VOLUME CAPACITY
ASS-HDF-4M 4.0 Cuft 112 ltrs
ASS-HDF-6M 6.0 Cuft 171 ltrs
ASS-HDF-10M 10.0 Cuft 280 ltrs

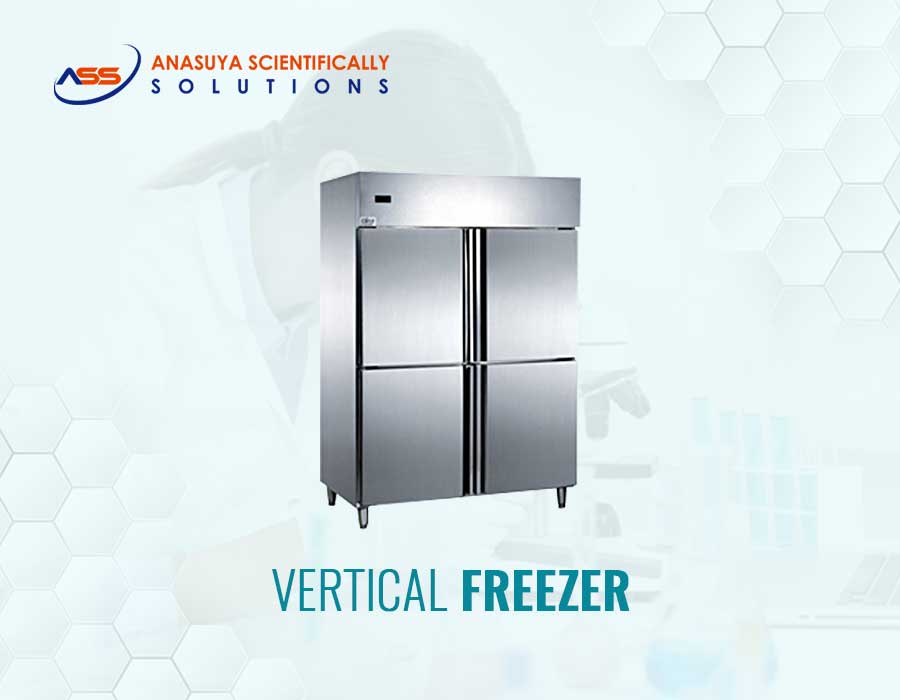

Vertical Deep Freezer

Specifications

  • Upright Vertical Deep Freezer
  • Temperature range -10°C to -40°C
  • Direct Cooling Type
  • Microprocessor controlled system.
  • Capacity 260 – 265 Lit
  • LED Display
  • Minimum 7 drawers required • CFC- free refrigerant.
  • Noise level less than 45 dB.
  • Alarms for systems malfunction over and under temperature & sensor error • Equipment should CE Certified.
  • Warranty period to be mentioned
  • AMC charges to be indicated
