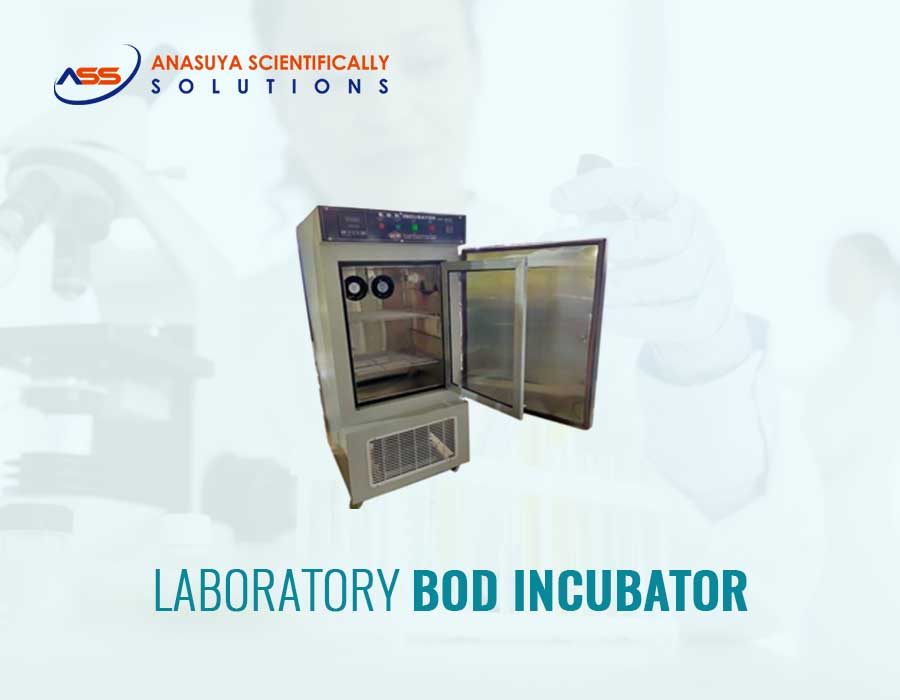

"ANASUYA SCIENTIFICALLY SOLUTIONS manufacturing Labortary BOD incubators designed to suit various tests and storage needs in laboratories at temperatures below ambient. Used for Biological Oxygen Demand tests, Storage of sensitive cultures, vaccines, culture of bacteria, microorganism, Serum incubation, seed germination etc. It works on CFC free refrigerant and hermetically sealed compressor. Auto tuneable microcontroller with PID logic gives accurate heating and cooling conditions inside the chamber. It has a clear view glass inner door. Motorised blower develops air recirculation system which ensures uniform temperature inside the chamber.
Poly-Urethane is used for efficient insulation.
TECHNICAL SPECIFICATIONS
- Standard Mode : Interior SS 304 with mirror polish.
Exterior MS With epoxy coating. - GMP Model : Interior SS 316 with mirror polish.
Exterior SS 304 with matt finish. - Temp. Range / Accuracy : 20°C to 60°C / ± 0.2°C
- Temp. Uniformity : ± 2°C
- Temp. Control : Auto tuned temperature microcontroller with PID algorithm.
- Heating : "U" shaped SS tubular air heater.
- Refrigerant : R134a; CFC free refrigerant.
- Air Flow : Forced air re-circulaton by means of motorised blower
- Motor : 1/12 HP, TEFC, F - Class insulation.
- Insulation : PUF (Poly Urethane Foam)
- Safety Features : Stand by Thermostat cuts off heater if temperature over-shoots.
Low water alarm for humidifier.
Time delay for compressor safety.
MODELS STANDARD (S) OR GMP (G)
| Models | Capacity Litres | Internal Dim. H.W.D (cm) | External dim H.W.D (cm) | Shelves No.s |
|---|---|---|---|---|
| ASS 521 | 100 | 50 x 50 x 40 | 142 x 66 x 72 | 2 |
| ASS 522 | 170 | 70 x 60 x 40 | 162 x 76 x 72 | 3 |
| ASS 523 | 225 | 75 x 60 x 50 | 167 x 76 x 82 | 3 |
| ASS 524 | 325 | 90 x 60 x 60 | 182 x 76 x 87 | 4 |
